Seeing is understanding

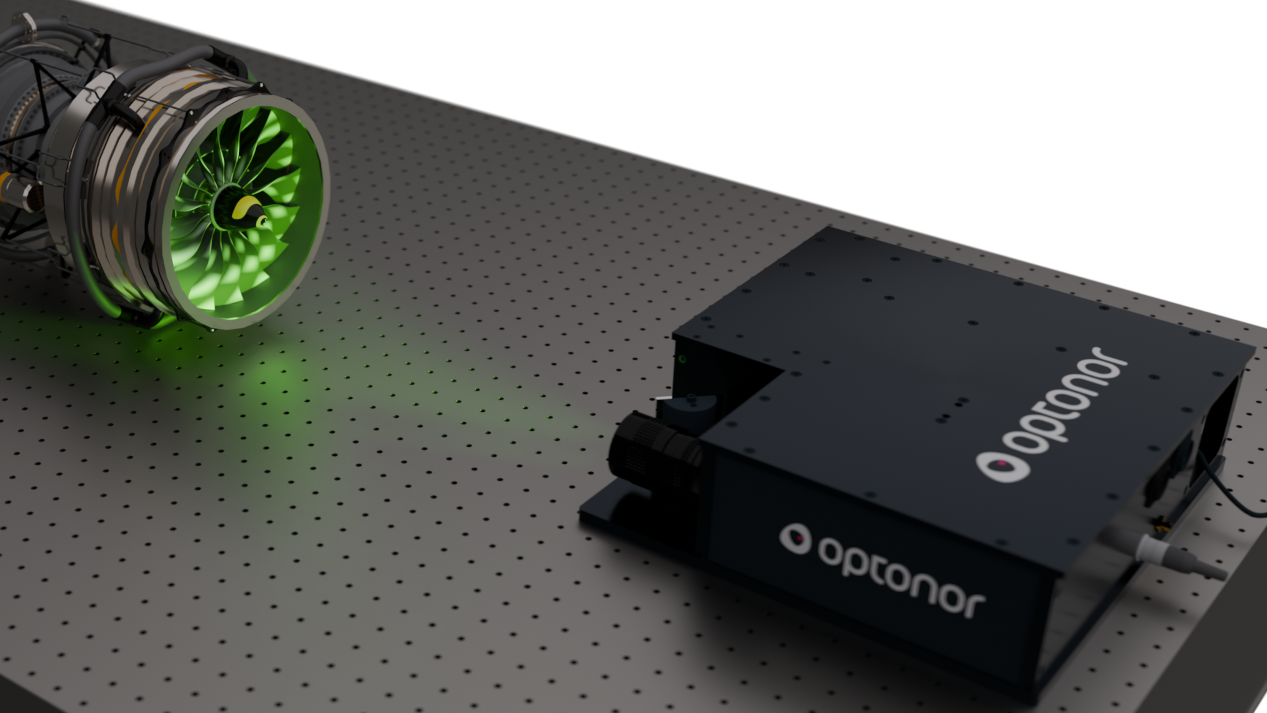

VibroMap_TurboFan_Modes_medium

Full-Field, Ultra-Fast Vibration Measurements and Non-Destructive Testing

Optonor develops advanced full-field laser vibrometry systems for vibration measurement, deformation analysis, and non-destructive testing. Our instruments deliver real-time, non-contact insight into structural dynamics across applications ranging from high-resolution MEMS and microstructure analysis to larger components and complex engineering structures.

Learn more about our core technologies →

Our Instruments

MicroMap:
3D Microstructure Vibrometer

Specialized for micro‑mechanical and MEMS devices, the MicroMap can measure out-of-plane and in-plane vibrations even on shiny surfaces. This is the only instrument in the world that can record the 3D vibrations of quartz crystals.

  • High‑frequency measurements up to 250 MHz
  • Sub‑micron spatial resolution
  • Full‑field 3D visualization


Explore MicroMap →

MEMSMap_subheading_04

VibroMap:
Full‑Field Laser Vibrometer

A complete laboratory system for real‑time vibration measurement of transducers, mechanical structures, composites and components of any kind. Its versatility means that it can also be used with thermal and vacuum loading.

  • Full‑field real-time mode shapes
  • High‑frequency measurements up to 25 MHz
  • Also applicable for NDT purposes


Explore VibroMap →

ShearMap:
High Resolution Shearography

This next-generation shearography system is vibration based and well suited for non-destructive testing, especially for composites. Can also be used with thermal and vacuum loading.

  • Full‑field and real-time
  • High probability of detection (PoD)
  • 100 times more sensitive than traditional shearography with much less excitation needed

Explore ShearMap →

Applications

MicroMap Application Examples

Characterize microstructure dynamics and packaging effects

VibroMap Application Examples

Analyze vibration modes, resonances, and dynamic behavior.

ShearMap Application Examples

Detect delamination, impact damage, and structural defects.

Why Optonor

  • 20+ years of interferometry expertise
  • Real‑time full‑field measurement — no scanning
  • High‑frequency capability up to the MHz range
  • Proven in aerospace, MEMS, and advanced materials
  • Trusted by research institutions and industry leaders

Technical Resources

  • Full‑Field Vibrometry Guide
  • Composite Defect Detection Guide
  • MEMS Vibration Measurement Guide
  • Case Studies and Whitepapers

Browse resources →

📞 Contact Optonor
Interested in a demonstration, technical details, or collaboration?
Our team is ready to support your measurement challenges.

Contact us →
Our systems are built for engineers and researchers who need accurate, reproducible, and high‑resolution vibration data.

Seeing is understanding

Optonor has developed, manufactured and delivered more than 100 systems for various applications and clients.
